RV Two Stage Rotary Vane

Primary Vacuum

The RV series is the world’s standard for oil-lubricated rotary-vane vacuum pumps. It is considered as the most rugged and best performing pump in it’s class, and is still today the undisputed leader in it’s industry.

Superior performance

Rugged pump with extreme vacuum and process performance

0.002 mbar

Excellent vacuum levels even with Gas Ballast

Extreme vapour handling

Through a unique combination of Gas Ballast and Dual-mode

< 48 dB(A)

Very quiet operation for a better work environment

A truly multi-purpose pump

The RV is a truly versatile pump for operation throughout your operations, perfect for wet applications, dusty applications and clean dry applications. We can also customise your RV series to meet your specific requirements, including PFPE prepared and ATEX approved pumps.

Excellent vapour handling capacity

The RV series of pumps has the highest vapour handling capacity of any rotary vane pump. This is ideally suited for your wet pumping applications such as freeze drying, extraction, filtration and gel drying.

Safe for your process and systems

The best-in-class anti-suck back protection prevents dust or oil mist from entering your system. The fast-acting automatic inlet valve acts within 0.4 seconds – providing reliable and safe operation in almost any application.

One-size fits all motor

The universal motor in the pump covers the widest possible voltage and frequency range from a single motor. If required, you can choose pumps with flameproof ATEX approved motors.

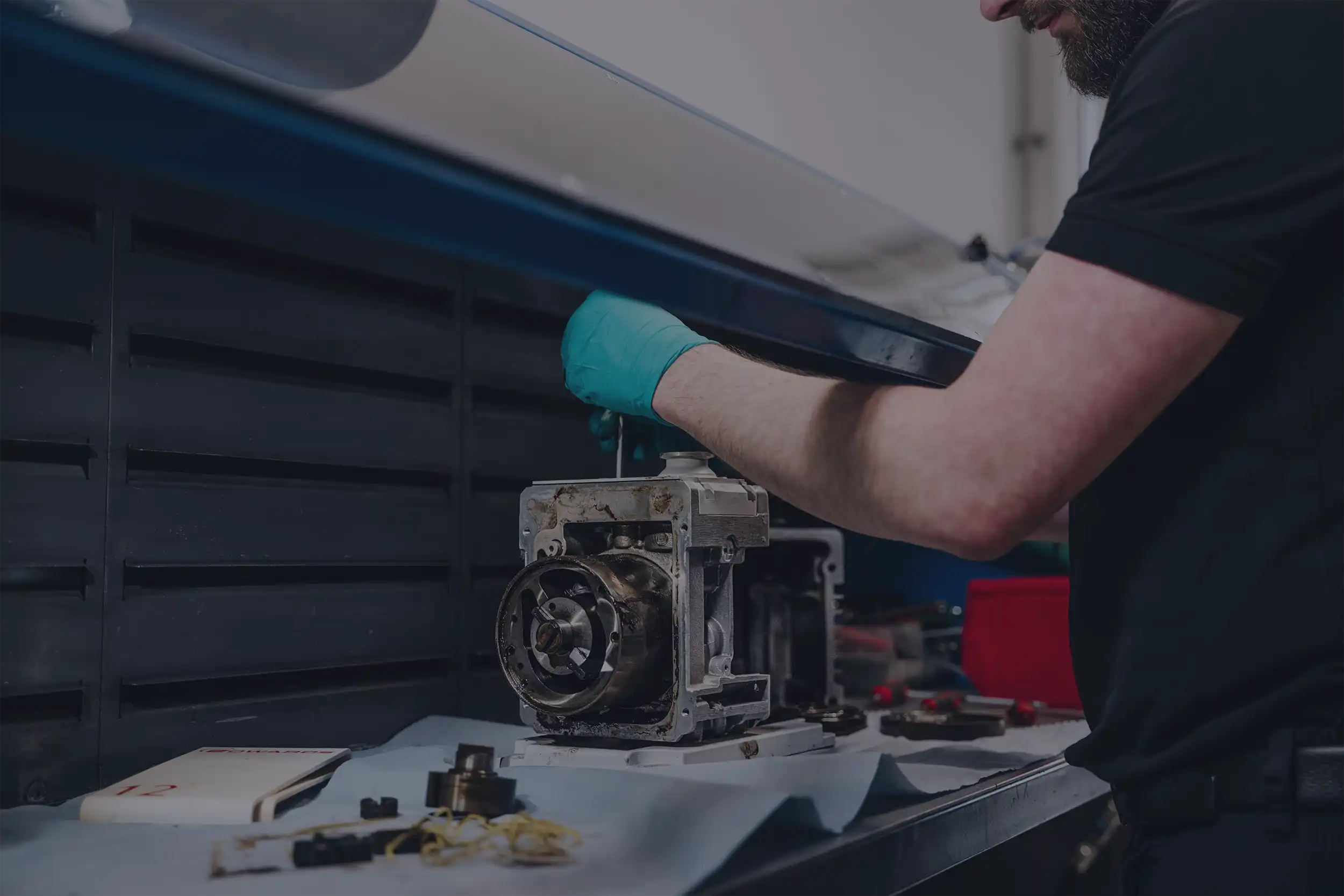

Designed for easy maintenance

You can service and replace parts without dismantling the pump mechanism. All parts self-align, eliminating the need for special assembly. You can use a one size hex-head wrench to dismantle all parts

Edwards Presents Oil Sealed Rotary Vane Pumps

by David Goodwin

RV range of two stage rotary vane pumps

These rugged vacuum pumps offer an excellent ultimate with good pumping speeds as well as superior vapour handling capabilities and quiet operation. Edwards RV series of vacuum pumps have become the industry standard with over 300,000 units sold. This success has been based on field proven design and reliability in a wide range of applications and environments.

Edwards Oil Sealed Rotary Vane Pumps

Technical Specifications

	Hz	Units	RV3	RV5	RV8	RV12
Peak pumping speed	60	cfm	2.3	3.6	5.9	8.4
Peak pumping speed	50	m³/h	3.3	5.1	8.5	12
Ultimate pressure (Total)	60	Torr	1.5 x 10^-3 (1.5 x 10 ^-2 with Fomblin®)
Ultimate pressure (Total)	50	mbar	2.0 x 10^-3 (2.0 x 10 ^-2 with Fomblin®)
Ultimate pressure GB I (Total)	50/60	Torr	2.3 x 10 ^-2
Ultimate pressure GB I (Total)		mbar	3.0 x 10 ^-2
Ultimate pressure GB II (Total)	50/60	Torr	9.1 x 10 ^-2	9.1 x 10 -2	4.6 x 10 ^-2	9.1 x 10 ^-2
Ultimate pressure GB II (Total)		mbar	1.2 x 10 ^-2	1.2 x 10 ^-2	6.0 x 10 ^-2	1.2 x 10 ^-2
High throughput mode	50/60	Torr	2.3 x 10 ^-2
High throughput mode		mbar	3.0 x 10 ^-2
Water vapour tolerance		Torr	60	38	38	24
Water vapour tolerance		mbar	80	50	60	32
Water vapour capacity – GB I		g/h	60	60	60	60
Water vapour capacity – GB II		g/h	220	220	220	290
